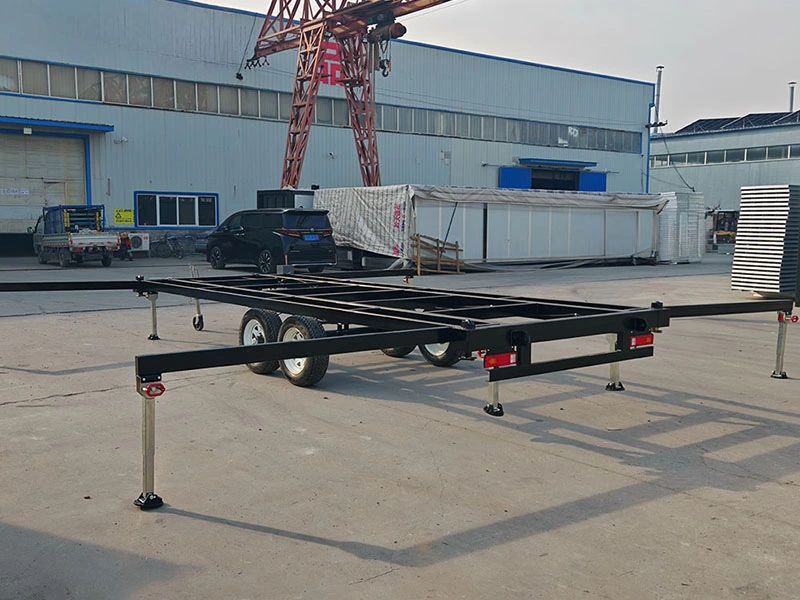

Trailer Specifications

Expanded Size

Shrink Size

Area

Weight

Advantage

Usage

Transport and Load

Production Time

Multi-purpose Tiny Homes

Granny Flat

Granny Flat

Airbnb

Airbnb

Holiday Home

Holiday Home

Beach Cabin

Beach Cabin

Rental Accommodation

Rental Accommodation

Temporary Home

Temporary Home

Retirement Home

Retirement Home

Caravan Park

Caravan Park

Home Office

Home Office

Additional Room

Additional Room

Workers Accommodation

Workers Accommodation

Studio

Studio

Characteristic

FRAME & EXTERNAL MATERIALS
  • Galvanized Steel frame with undercoat finish
  • Cast-iron container pin holders comply to ISO 1161
  • Double Side extra fiber-reinforced plastic 3mm cover  for better waterproof and insulation.
  • 75mm EPS with double side 0.5mm steel sandwich panel
  • 60mm EPS wall panels + 15mm Cladding    - available as an upgrade option
  • Cladding: High-density rigid polyurethane insulation with aluminum steel sheet.
ROOF
  • Robust steel sheeting exterior.
  • Exterior coated with epoxy paint.
  • Glass-wool underlay for thermal and acoustic insulation.
  • Interior features a steel ceiling finished with off-white enamel paint.
  • Exterior and interior clad with steel.
  • Expanded polystyrene insulation between steel layers.
  • Provides effective thermal and acoustic insulation.
BATHROOM
  • Indulge in the luxury of a full-length shower complete with a semi-frameless screen,  rain maker matte black shower head and adjustable shower rail.
  • The vanity basin features pop-up waste, mixer tapware, and an overhead mirror with convenient storage space.
  • Toilet Features a soft-closing lid for quiet operation.
  • An installed exhaust fan for ventilation.
  • The instant water heater is already installed for you, compact in size and convenient to use.
PLUMBING
  • All plumbing connections are on the external bathroom wall.
  • Pre-fitted hot/cold inlets for kitchen sink, bathroom basin, toilet, and shower.
  • Separate drain pipes for waste water and grey water.
  • Hot and cold water ready with pre-plumbed brass threaded inlets, ½ inch nipple require to connect hose (poly pipe)
  • Cold water caravan plumbing kit supplied for easy connection.
  • Pre-plumbed 50mm PVC pipes from kitchen and bathroom to a single outlet.
DOORS AND WINDOWS
  • As portas e janelas são todas certificadas 3C.
  • All glass sections feature a double-sided vacuum structure of 5mm + 12mm + 5mm.
  • Combined with high-quality aluminum alloy and robust rubber components, it ensures long-lasting soundproofing and thermal insulation performance, as good as new over time.
  • While creating a quiet and serene indoor environment, it also saves you a significant amount of electricity on air conditioning.
  • Available in various styles to fully meet your aesthetic preferences.
DATA ANALYSIS
  • Anti-earthquake level: 8
  • Wind resistance rating: 0.6kn/m2 120KM/H
  • Top middle load: 120kg/m2
  • Top slope load: 100kg/m2
  • Floor load: 200 kg/m2
  • Snow pressure Middle top: 1.2kn/m2
  • Snow pressure Bevel top: 1.0kn/m2
  • Thermal conductivity: 0.05
ELECTRICAL
  • Electrical system designs compliant with the electrical standards of various countries, along with high-quality and high-specification wiring harnesses and components.
  • Pre-installed lighting fixtures and power outlets
  • Indoor wiring box
KITCHEN
  • Luxurious 20mm quartz engineered stone bench top.
  • - available in a selection of styles
  • Sleek white cabinets with overhead cupboards with soft closing hinges.
  • Double bowl stainless steel sink with flip mixer. (assembly may require)
INTERNAL MATERIALS
  • Fiber cement floorboard, PVC floor covering
  • 1st layer 15mm MgO/BULU Board
  • 2nd layer 2mm PVC vinyl floor
  • 2nd layer 4mm SPC (Stone Plastic Composite) flooring for enhanced durability - available as an upgrade option
