20ft Expandable Container House Specifications

Expanded Size

5900*6540*2530mm

Shrink Size

2220*5900*2530mm

Area

38.5㎡

Weight

3500kg

Advantage

Quick Installation

Usage

Warehouse Workshop Villa Office

Transport and Load

Container Shipment, FOB to Tianjin Port, China or CIF to a port near you

Production Time

30 Days

Preset Display
of Apartment Type

Three bedrooms One bathroom

Three bedrooms One bathroom

Three bedrooms One bathroom

Three bedrooms One bathroom

Four bedrooms One bathroom

Four bedrooms One bathroom

Two bedrooms One bathroom

Two bedrooms One bathroom

Two bedrooms One bathroom

Two bedrooms One bathroom

Two bedrooms One bathroom

Two bedrooms One bathroom

One bedroom One bathroom

One bedroom One bathroom

One bedroom One bathroom

One bedroom One bathroom

One bedroom

One bedroom

Empty house

Empty house

Optional Add-Ons

Kitchen Cabinet

Kitchen Cabinet

Bathroom Sliding Door Styles

Bathroom Sliding Door Styles

EPS Color Chart

EPS Color Chart

WPC Flooring Color Chart

WPC Flooring Color Chart

Color Chart for Interior Wall Panels and Integrated Boards

Color Chart for Interior Wall Panels and Integrated Boards

Power Distribution System

Power Distribution System

Decorative Carved Panel

Decorative Carved Panel

WPC Grille

WPC Grille

PVC Flooring

PVC Flooring

Bespoke Experience

We offer more configuration options, to discuss making a Neo home your very own.

Multi-purpose Tiny Homes

Granny Flat

Granny Flat

Airbnb

Airbnb

Holiday Home

Holiday Home

Beach Cabin

Beach Cabin

Rental Accommodation

Rental Accommodation

Temporary Home

Temporary Home

Retirement Home

Retirement Home

Caravan Park

Caravan Park

Home Office

Home Office

Additional Room

Additional Room

Workers Accommodation

Workers Accommodation

Studio

Studio

Characteristic

FRAME & EXTERNAL MATERIALS
  • Galvanized Steel frame with undercoat finish
  • Cast-iron container pin holders comply to ISO 1161
  • Double Side extra fiber-reinforced plastic 3mm cover  for better waterproof and insulation.
  • 75mm EPS with double side 0.5mm steel sandwich panel
  • 60mm EPS wall panels + 15mm Cladding    - available as an upgrade option
  • Cladding: High-density rigid polyurethane insulation with aluminum steel sheet.
ROOF
  • Robust steel sheeting exterior.
  • Exterior coated with epoxy paint.
  • Glass-wool underlay for thermal and acoustic insulation.
  • Interior features a steel ceiling finished with off-white enamel paint.
  • Exterior and interior clad with steel.
  • Expanded polystyrene insulation between steel layers.
  • Provides effective thermal and acoustic insulation.
BATHROOM
  • Indulge in the luxury of a full-length shower complete with a semi-frameless screen,  rain maker matte black shower head and adjustable shower rail.
  • The vanity basin features pop-up waste, mixer tapware, and an overhead mirror with convenient storage space.
  • Toilet Features a soft-closing lid for quiet operation.
  • An installed exhaust fan for ventilation.
  • The instant water heater is already installed for you, compact in size and convenient to use.
PLUMBING
  • All plumbing connections are on the external bathroom wall.
  • Pre-fitted hot/cold inlets for kitchen sink, bathroom basin, toilet, and shower.
  • Separate drain pipes for waste water and grey water.
  • Hot and cold water ready with pre-plumbed brass threaded inlets, ½ inch nipple require to connect hose (poly pipe)
  • Cold water caravan plumbing kit supplied for easy connection.
  • Pre-plumbed 50mm PVC pipes from kitchen and bathroom to a single outlet.

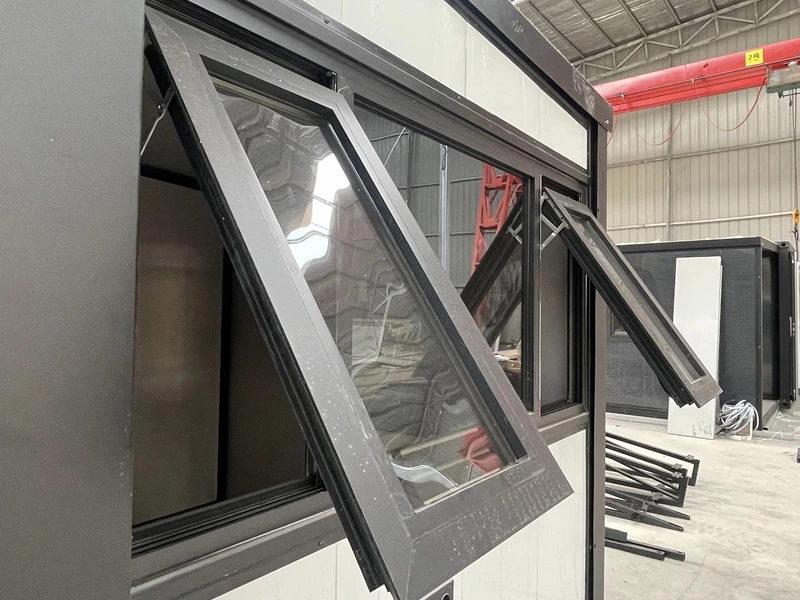

DOORS AND WINDOWS
  • As portas e janelas são todas certificadas 3C.
  • All glass sections feature a double-sided vacuum structure of 5mm + 12mm + 5mm.
  • Combined with high-quality aluminum alloy and robust rubber components, it ensures long-lasting soundproofing and thermal insulation performance, as good as new over time.
  • While creating a quiet and serene indoor environment, it also saves you a significant amount of electricity on air conditioning.
  • Available in various styles to fully meet your aesthetic preferences.
DATA ANALYSIS
  • Anti-earthquake level: 8
  • Wind resistance rating: 0.6kn/m2 120KM/H
  • Top middle load: 120kg/m2
  • Top slope load: 100kg/m2
  • Floor load: 200 kg/m2
  • Snow pressure Middle top: 1.2kn/m2
  • Snow pressure Bevel top: 1.0kn/m2
  • Thermal conductivity: 0.05
ELECTRICAL
  • Electrical system designs compliant with the electrical standards of various countries, along with high-quality and high-specification wiring harnesses and components.
  • Pre-installed lighting fixtures and power outlets
  • Indoor wiring box

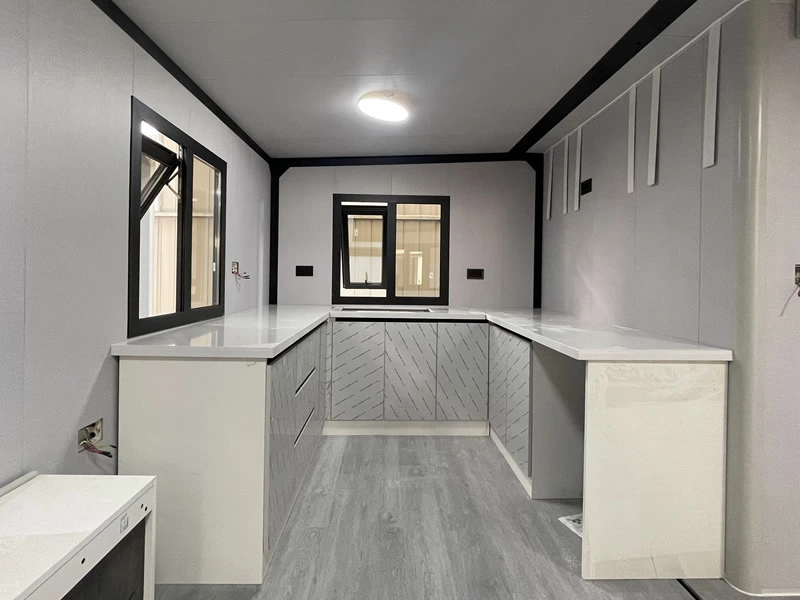

KITCHEN
  • Luxurious 20mm quartz engineered stone bench top.
  • - available in a selection of styles
  • Sleek white cabinets with overhead cupboards with soft closing hinges.
  • Double bowl stainless steel sink with flip mixer. (assembly may require)
INTERNAL MATERIALS
  • Fiber cement floorboard, PVC floor covering
  • 1st layer 15mm MgO/BULU Board
  • 2nd layer 2mm PVC vinyl floor
  • 2nd layer 4mm SPC (Stone Plastic Composite) flooring for enhanced durability - available as an upgrade option

Quick Deployment

Characteristic Waterproof 100% Fireproof Grade A
Wind Resistance 90~110Km/hour Seismic Resistance Grade 10
Sound Resistance >=30dB Lifetime more than 30 years
Roof Live Load 1.5 kN/m2 Floor Live Load 2.5kN/m2
Details Roof External roofing t75mm fireproof EPS sandwich panel
Insulating layer Can be increased according to customer needs
Internal ceiling t0.3mm Type-200 ceiling plate
Both sides t50mm fireproof EPS Sandwich plate
Floor Side walls, front and rear wall panels t75mm fireproof EPS or rockwool boardsandwich panel
The internal partition t50mm fireproof EPS or rockwool board sandwich panel
middle floor Fire resistant Glass magnesium board(asbestos-free)
side floor Bamboo board

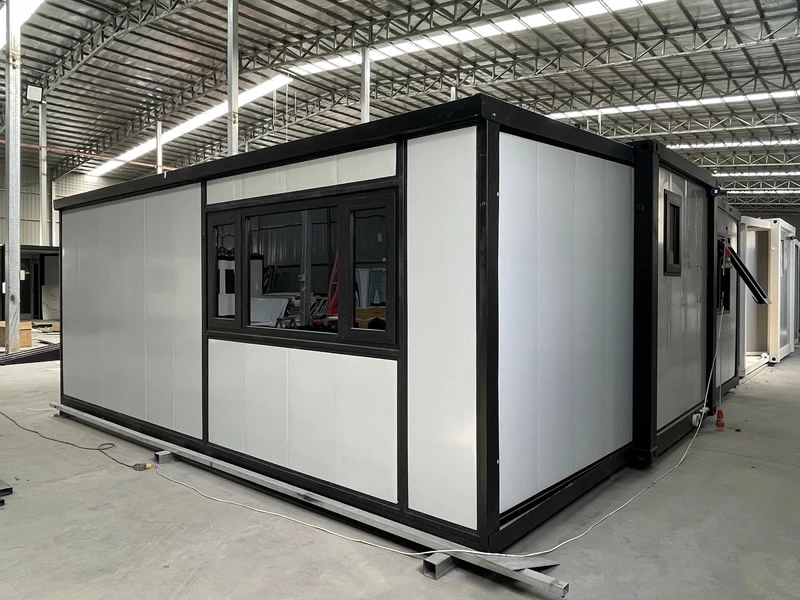

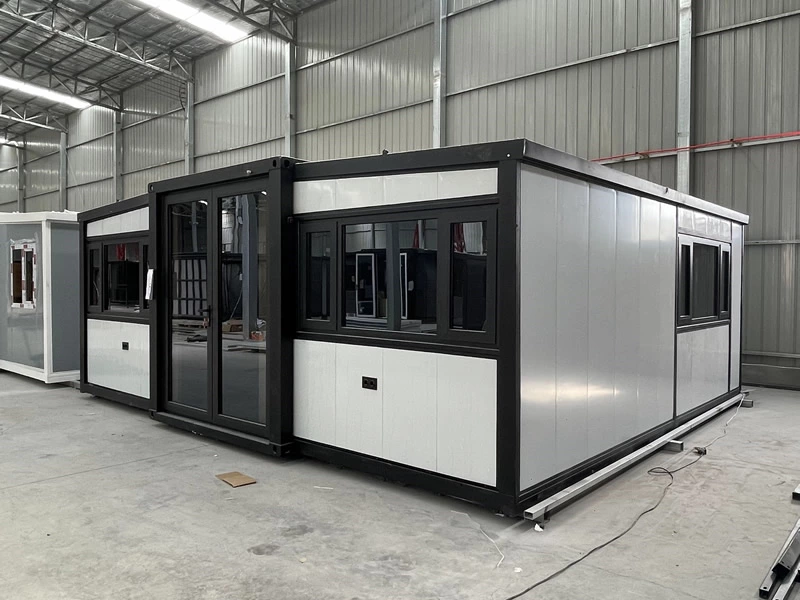

20ft Expandable Container House



Flexible Design – Maximize Space When You Need It

The dual-wing expandable structure allows for quick and easy adjustment of interior space. Whether you need extra room for living, working, or storage, this innovative design expands when needed and retracts to save space when not in use — making it ideal for both urban and remote environments.

20ft Expandable Container House

Quick Assembly & Eco-Friendly Construction

Designed for fast setup and easy disassembly, this container house significantly reduces construction waste and energy consumption. Its sustainable building approach supports green development and environmental protection — perfect for eco-conscious users..

20ft Expandable Container House

Customizable for a Wide Range of Applications

The use of prefabricated parts not only enhances construction efficiency but also helps control costs. Standardized production reduces material waste, and faster construction means lower labor and indirect expenses—making it a more economical choice for users.

20ft Expandable Container House

Environmentally Sustainable

Many expandable modular houses incorporate eco-friendly materials and technologies, such as high-performance insulation systems and solar panels, which help reduce energy consumption. Additionally, their modular structure allows components to be reused or recycled at the end of their service life, minimizing environmental impact.

20ft Expandable Container House

20° Sloped Roof

Our 20° sloped triangular roof design enhances drainage, prevents water leakage, and gives your house a modern aesthetic. It allows for a spacious 2.9-meter interior ceiling height. The roof requires assembly and installation by the customer or a qualified professional.

20ft Expandable Container House

Quick Deployment

With most components prefabricated in the factory, on-site work is limited to simple assembly, significantly shortening the construction timeline. Compared to traditional building methods, expandable modular houses can be completed much faster, Allowing owners to move in or use the space sooner. Completed even in few hours
